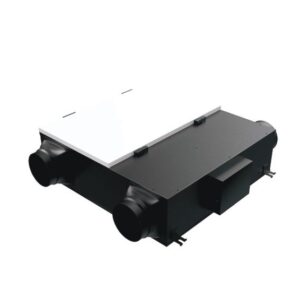

Single Room ERV

Operation modes
–Ventilation Mode: The ventilator runs in the air extract
or air supply mode with a set speed. In case of synchronous
operation of two connected ventilators one unit operates in
the supply mode and the other one in the extract mode.
– Regeneration Mode: The ventilator runs in two
cycles, 75 seconds each, to provide heat and moisture
regeneration.

Category: Energy Recovery Ventilation

Description
Reviews (0)

Feature:
-Supply clean fresh air to the premises
-Low noise level
-Low energy demand
-Clean intake air from dust, insects, exhausts ,fumes
-Prevent penetration of excessive humidity and appearance of mould
-Recover heat and provide indoor humidity balance

Technical Specifications:

Ventilation Rates: 28/32/35 CFM
Heat Recovery Efficiency : up to 90%
Humidity Recovery : 20-30%
Specific Fan Efficiency : 0.06-0.17 W/cfm
Ventilation System Efficiency : 0.10 Wh/m?
Filter : G3 or optional HEPA
Sound Levels : 20.0 dB/ 24.0 dB /30.0 dB
Diameter Unit : 150 mm
Exterior Tube Diameter : 163 mm
Wall Thickness standard: 250 mm-450mm
Installation Tube (can be cut) : 250 mm to 450 mm
Inside Cover: 242 mm x 242 mm
